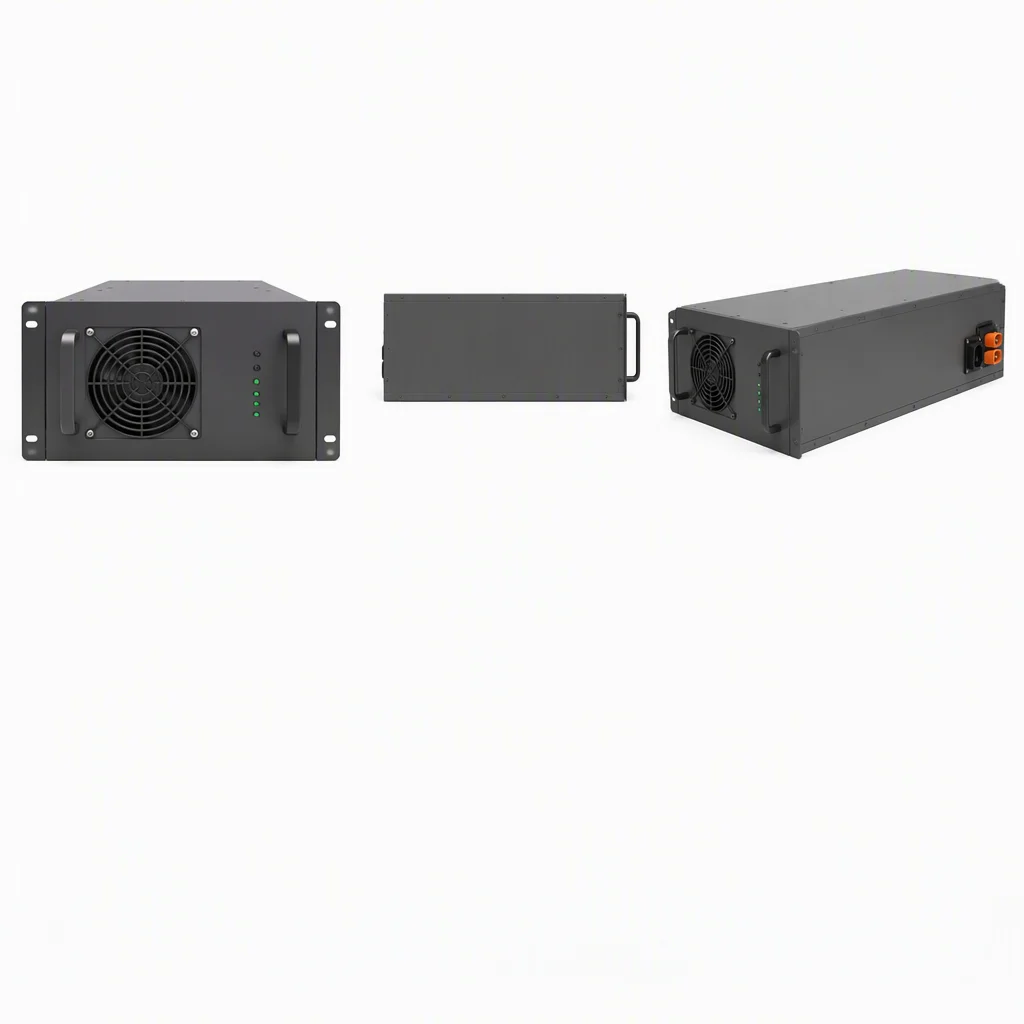

30 kW, air-cooled, field-proven
The 30 kW air-cooled module is the workhorse of DC charging: 200–1000 VDC output, 96.5% peak efficiency, EMC Class B and CAN control, certified CE, TÜV and cTUVus. Stack it from 30 kW up to 120 kW and it simply keeps running.
A 200–1000 VDC stage you can count on.
Rated 30 kW from a three-phase 400 VAC supply, the module drives any pack from 400 V to 800 V and beyond. Forced air keeps it simple: no coolant loop, no pump, no leaks — just a fan, a heatsink and a design that has run for years in 30–120 kW chargers.
- 96.5% peak efficiency — more of the grid's energy into the battery, less into the cabinet.
- 200–1000 VDC output — one module covers 400 V and 800 V platforms.
- EMC Class B — quiet enough for indoor and residential-adjacent installs.
| Rated power | 30 kW |
|---|---|
| Input | 3-phase 400 VAC |
| Output voltage | 200–1000 VDC |
| Peak efficiency | 96.5% |
| Cooling | Forced air |
| EMC | Class B |
| Communication | CAN bus |
| Certifications | CE · TÜV · cTUVus |
Every number the integrator needs.
| Parameter | Value |
|---|---|
| Rated output power | 30 kW |
| Input voltage | 3-phase 400 VAC |
| Output voltage range | 200–1000 VDC |
| Peak efficiency | 96.5% |
| Topology | Vienna rectifier + LLC resonant |
| THDi | < 5% |
| Cooling | Forced air |
| EMC | Class B |
| Communication | CAN bus |
| Operating temperature | −30 °C to +55 °C |
| Protection | Overvoltage · overcurrent · overtemperature · short-circuit |
| Mounting | Rack-mount, hot-swappable |
| Certifications | CE · TÜV · cTUVus |
Less heat, longer life, lower bill.
Every percentage point of module efficiency is heat you do not have to remove. At the charger level, raising efficiency from 94% to 96% saves a 120 kW unit about 4,380 kWh per year — and cooling hardware is 15–25% of a 120 kW+ charger's BOM.
- Vienna rectifier + LLC resonant topology holds THDi under 5% and keeps the grid side clean.
- Forced air means no coolant, no pump and a service visit that takes minutes.
- Field-proven across 30–120 kW charger builds in Europe and the Middle East.
Details that hold up in the field.
The cooling fan, status LEDs and rear power connector of the 30 kW air-cooled module — drop-in for DC charger integrators.
Request datasheetStack it to your charger's power class.
The module scales by stacking: the same unit powers a compact 30 kW charger or a 120 kW dual-gun fast charger, with CAN reporting each module's status to the main controller.
1 module → 30 kW
Compact DC for retail and destination charging where 30 kW is the right dwell-time match.
2 modules → 60 kW
All-in-one fast chargers with headroom for 800 V packs and two-gun sharing.
4 modules → 120 kW
Dual-gun DC for fleets and highway stops, with per-module redundancy.
CAN + hot-swap
Drop-in rack mounting and CAN telemetry speed up assembly and field service.
Approved for the grids that matter.
The 30 kW module ships with the marks your charger needs to enter Europe and North America, plus EMC Class B for installs near people and homes.
Get the 30 kW module datasheet and a sample.
Share your charger's target power, quantity and target market — we respond with the full datasheet, sample lead time and volume pricing within 48 hours.
