60 kW, one cabinet, plug and charge
The 30–60 kW all-in-one DC fast charger puts 200–1000 VDC in a single IP54 cabinet for retail forecourts, workplace lots and destination charging. CCS1/CCS2/CHAdeMO/GB-T, 93% whole-unit efficiency and OCPP 1.6J — no power cabinet, no separate dispenser, no site rebuild.

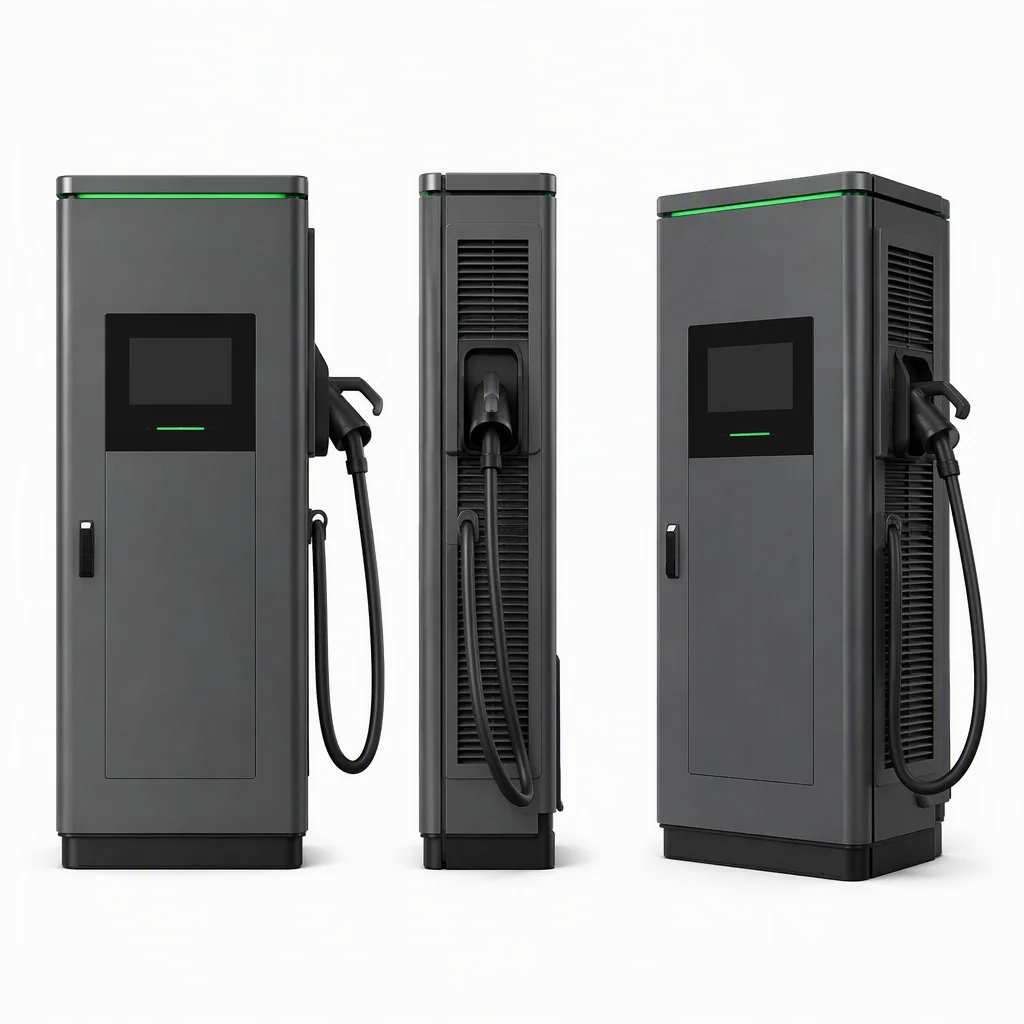

A DC fast charger that fits a single parking bay.
The compact cabinet integrates the power modules, HMI, metering and cable management in one floor-standing unit — no remote power cabinet, no trenching between cabinet and dispenser.
- 30 or 60 kW rated output on a 3-phase 400 VAC supply, with a 7-inch touchscreen.
- 200–1000 VDC output covers every modern EV battery, not just 400 V platforms.
- 93% whole-unit efficiency with PF ≥0.98 and THDi ≤5% at the grid connection.
- IP54 + IK10 and −35°C to +55°C operation for uncovered outdoor sites.
The numbers that matter at the grid connection.
| Rated power | 30 kW / 60 kW |
|---|---|
| Input | 3-phase 400 VAC, 50/60 Hz |
| Output voltage | 200–1000 VDC |
| Max current | 150 A (CCS) · 125 A (CHAdeMO) |
| Connectors | CCS1 / CCS2 / CHAdeMO / GB/T |
| Whole-unit efficiency | ≥93% |
|---|---|
| Power factor | ≥0.98 |
| THDi | ≤5% |
| Enclosure | IP54 + IK10 |
| Operating temp | −35°C to +55°C |
Full technical specification.
| Parameter | Value |
|---|---|
| Rated power | 30 kW / 60 kW |
| Input voltage | 3-phase 400 VAC ±15%, 50/60 Hz |
| Output voltage range | 200–1000 VDC |
| Max output current | 150 A (CCS) · 125 A (CHAdeMO) · 150 A (GB/T) |
| Connector standards | CCS1 / CCS2 / CHAdeMO / GB/T |
| Gun configuration | Single gun / dual gun options |
| Whole-unit efficiency | ≥93% |
| Power factor | ≥0.98 |
| THDi | ≤5% |
| Cooling | Air-cooled |
| Enclosure protection | IP54 + IK10 |
| Operating temperature | −35°C to +55°C |
| Protocol | OCPP 1.6J / 2.0.1 |
| Vehicle communication | ISO 15118 Plug & Charge (optional) |
| Display | 7-inch touchscreen |
| Standby power | <35 W (ECO mode 12 W) |
Plug in, authenticate, walk away.
The compact charger is engineered for unattended, driver-facing operation — RFID and app authentication, a 7-inch HMI and OCPP remote management keep the site running without staff on hand.
- Dynamic load balancing spreads two-gun power against the site's available capacity, avoiding demand charges that run 30–70% of commercial bills.
- MID-ready metering supports per-kWh billing for paid public and workplace sessions.
- 48-hour burn-in and 33 environmental tests ship a charger that survives −35°C cold starts.
Details that hold up in the field.

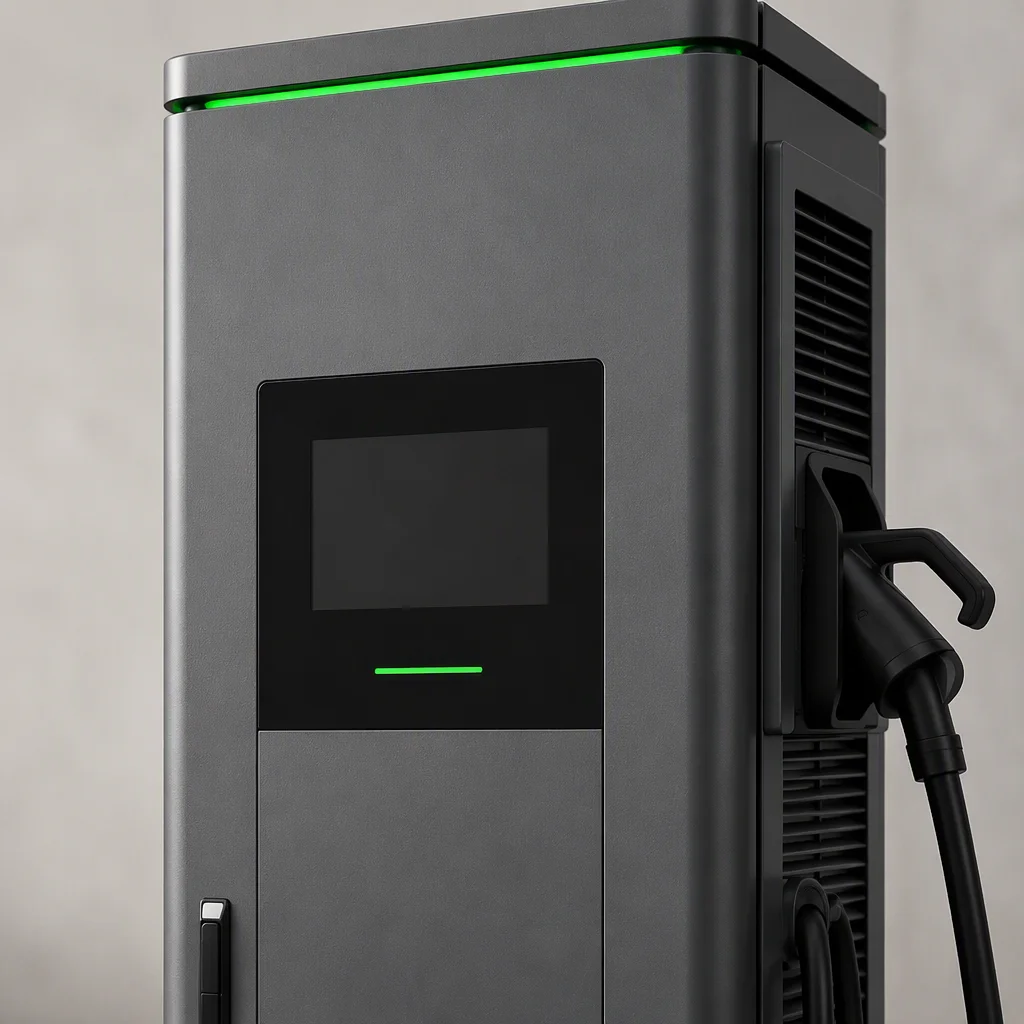

The touchscreen, RFID reader and cable holster on a compact 30–60 kW cabinet — everything an operator needs at arm's reach.
Request datasheetBuilt for dwell time, not highway speed.

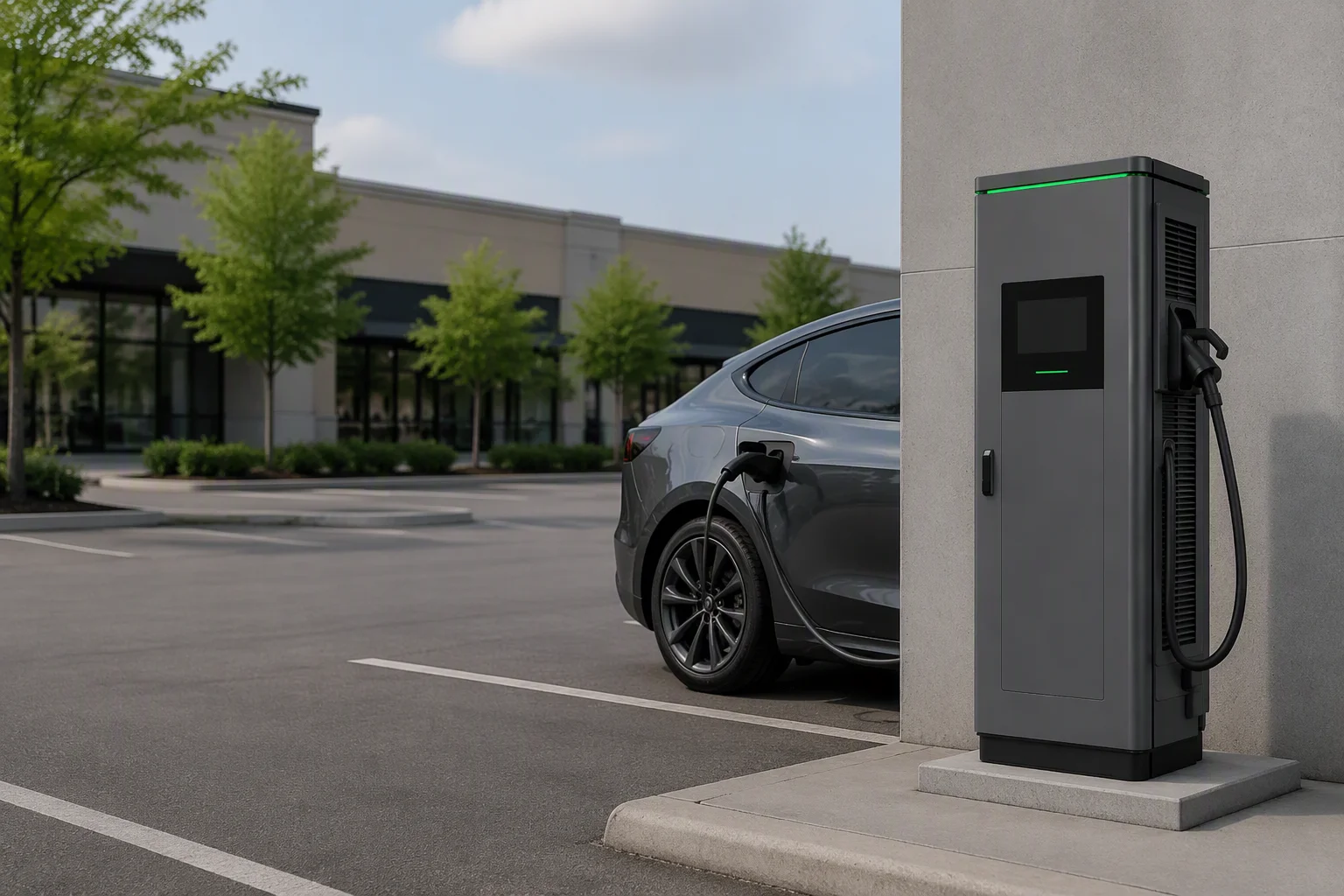

Retail & destination
EV drivers visit 45% more than fuel customers; a compact DC delivers 3–10 sessions per day per port.
Workplace & office
A 60 kW cabinet pulls 50–150 kW, so schedule off-peak to avoid 30–70% demand charges.
Light fleet & depot
Delivery vans on overnight 30–60 kW charging cut fuel and maintenance 25–40% versus diesel.
Certified for the market you sell into.
The compact charger ships CE-marked for Europe and is prepared for UL 2202/UL 2231 for North America, with IEC 61851 and ISO 15118 interoperability.
Compact DC charger, answered.
Get your 30–60 kW quote in 48 hours.
DC fast chargers from 1 unit, CE ready, OEM/ODM from Shenzhen. Tell us your power level, connectors and target market — we reply with specs, pricing and lead time.
