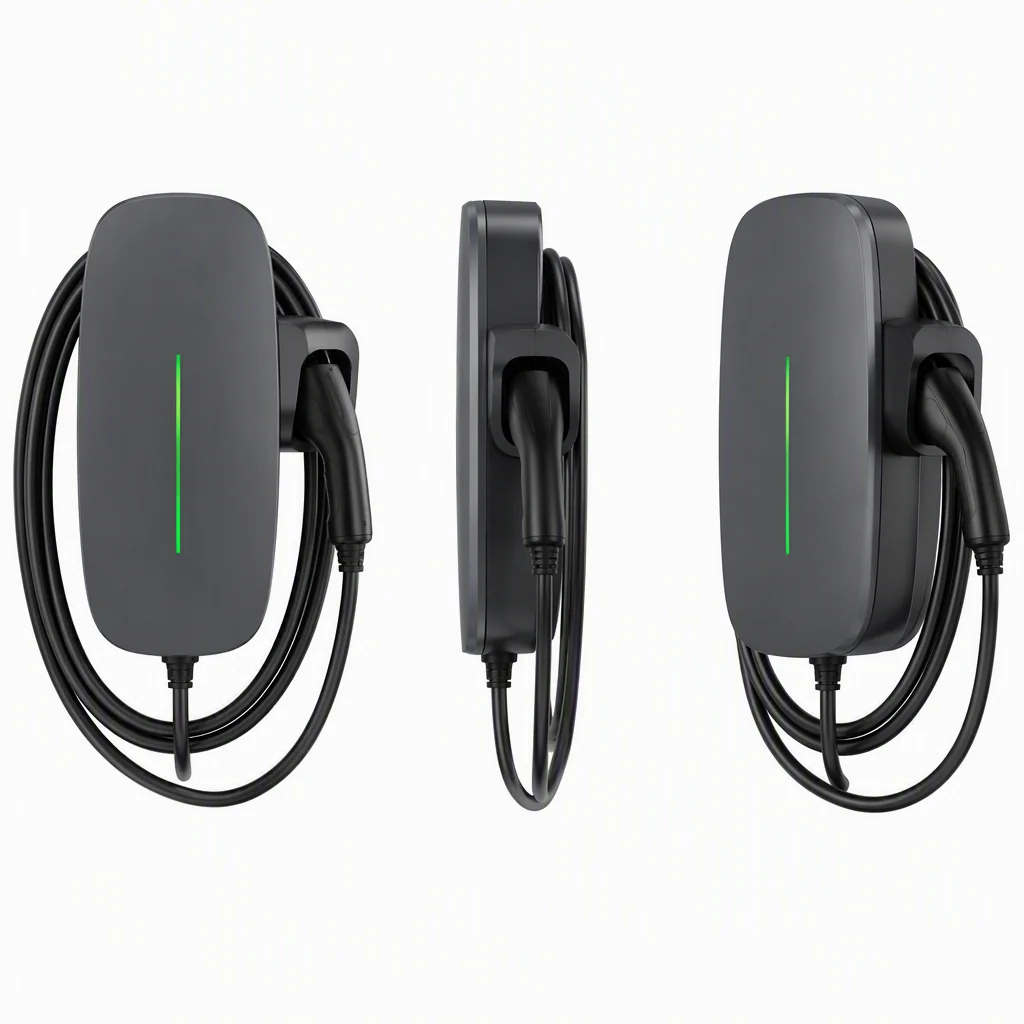

The 22 kW wallbox, built for daily charge
A wall-mounted AC EV charger rated 7.4 / 11 / 22 kW with a Type 2 or Type 1 connector. It charges at up to 32 A, lives in an IP65 + IK10 enclosure rated for −30°C to +55°C, and speaks OCPP 2.0.1 for load balancing, RFID and app control.
One enclosure, three power ratings.
The same 22 kW-rated enclosure is sold derated to 7.4 kW and 11 kW, so installers stock one unit and select the rating to match the home's supply — 16 A on single-phase 230 V or 32 A on three-phase 400 V.
- 7.4 / 11 / 22 kW on 16 A or 32 A, single- or three-phase.
- Type 2 or Type 1 connector on a 5 m or 7.5 m cable.
- IP65 + IK10 enclosure for outdoor mounting and impact resistance.
- −30°C to +55°C operating range, efficiency above 95%.
Key parameters, on one card.
| Rated power | 7.4 / 11 / 22 kW |
|---|---|
| Input | 230 V single-phase / 400 V three-phase |
| Max current | 16 A (7.4 kW) / 32 A (11 & 22 kW) |
| Connector | Type 2 / Type 1 · 5 m or 7.5 m cable |
| Charging mode | Mode 3 (IEC 61851-1) |
| Enclosure | IP65 · IK10 |
| Operating temp | −30°C to +55°C |
| Efficiency | >95% · standby <3 W |
| Protocol | OCPP 1.6J / 2.0.1 |
| Access | RFID · App · Bluetooth |
Full specification.
| Parameter | Value |
|---|---|
| Rated power | 7.4 / 11 / 22 kW |
| Input voltage | 230 V AC single-phase / 400 V AC three-phase |
| Input frequency | 50 / 60 Hz |
| Max output current | 16 A (7.4 kW) / 32 A (11 & 22 kW) |
| Connector | Type 2 (IEC 62196-2) or Type 1 (SAE J1772) |
| Cable length | 5 m / 7.5 m |
| Charging mode | Mode 3 (IEC 61851-1) |
| Efficiency | >95% |
| Standby power | <3 W |
| Enclosure rating | IP65 · IK10 |
| Operating temperature | −30°C to +55°C |
| Relative humidity | 5%–95% non-condensing |
| Communication | Ethernet · Wi-Fi · 4G (optional) |
| Protocol | OCPP 1.6J / 2.0.1 |
| Access control | RFID (MIFARE) · App · Bluetooth |
| Load management | Dynamic load balancing · solar integration |
| Safety protection | 6 mA DC leakage (RCD type A + DC) · overcurrent · overvoltage · over-temperature |
| Certification | CE · UL 2594 · FCC · Energy Star |
Safe on every grid, quiet in every garage.
The wallbox is built around the details that decide whether a home install passes inspection and keeps working for years.
- 6 mA DC leakage protection trips on residual DC current that a standard type-A RCD misses — required for safe Mode 3 charging.
- Dynamic load balancing trims charge current when the home's other loads rise, keeping total draw under the breaker limit.
- OCPP 2.0.1 exposes the unit to any operator platform for remote start, firmware OTA and per-session metering.
- −30°C to +55°C operation with sealed IP65 electronics survives salt, rain and direct sun.
Details you notice at install time.

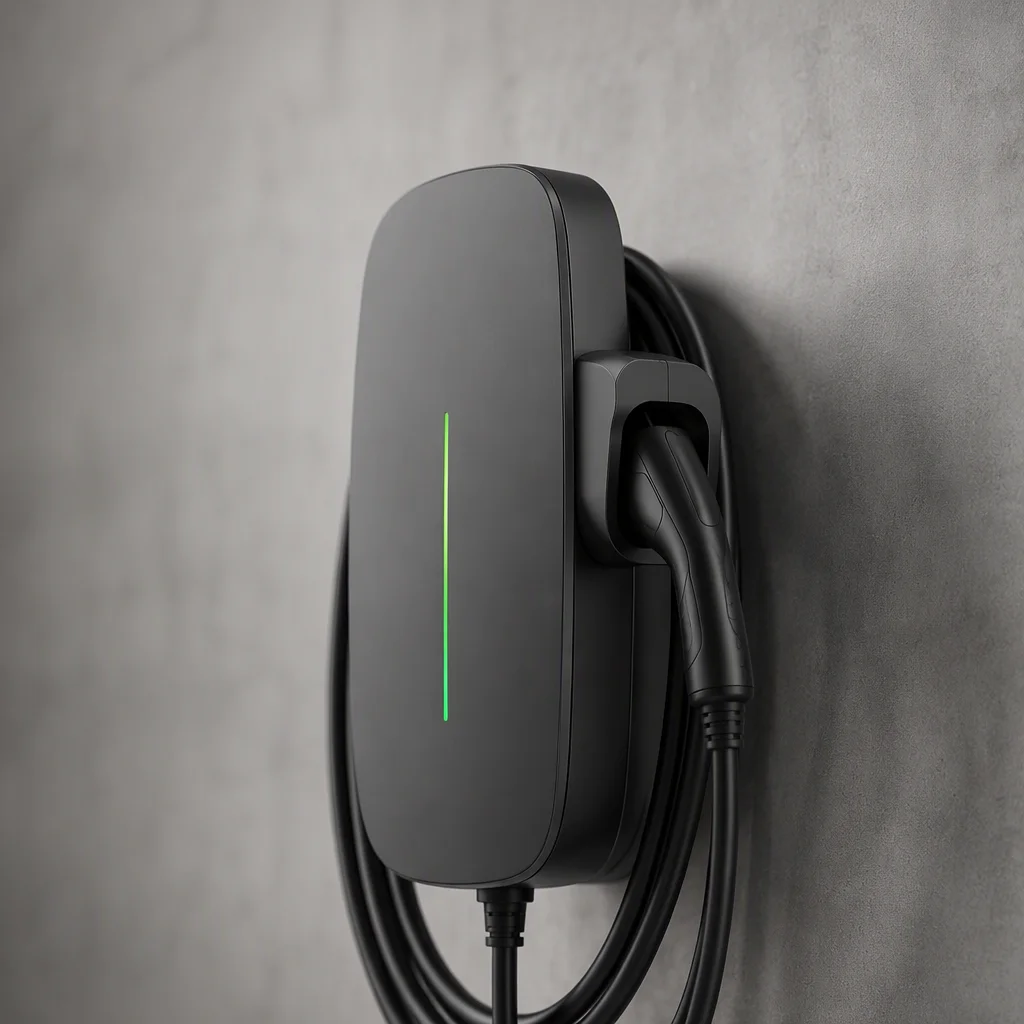

The connector parks in a side holster so the plug never rests in dirt, and a slim LED strip reads status at a glance without a display to power.
- Integrated cable holster keeps the Type 2 / Type 1 plug dry and off the ground between sessions.
- LED status strip shows standby, charging and fault states in one glance.
- IK10 impact rating stands up to garage bumps and parking-lot knocks without cracking the housing.
Home, condo or new build.
Single-family home
A 7.4 kW wallbox adds a full charge overnight on a 16 A circuit; 11 kW covers a 70 kWh battery in roughly 7 hours on three-phase.
Apartment & condo
Renters face charging access twice as often as owners. Load sharing plus OCPP per-unit billing splits one supply across dozens of bays.
New build & developers
Pre-wired conduits and a standard 22 kW-capable unit let developers spec one model for the whole site and activate power per plot later.
Approved before it leaves Shenzhen.
The wallbox meets ENERGY STAR standby limits — a base 4 W in no-vehicle mode plus defined allowances for Wi-Fi, cellular and RFID radios — and carries the marks each market demands.
Wallbox, answered.
Spec your wallbox order.
Tell us the power rating, connector and target market. We return a datasheet, certification scope, MOQ and lead time within 48 hours.
