Dual-port AC for workplace and retail
A floor-standing commercial AC charging pedestal with two independent 11 / 22 kW ports, each at 32 A on a Type 2 connector. Two RFID zones and MID-certified metering bill each bay separately, and OCPP 1.6J / 2.0.1 ties it into any operator platform.

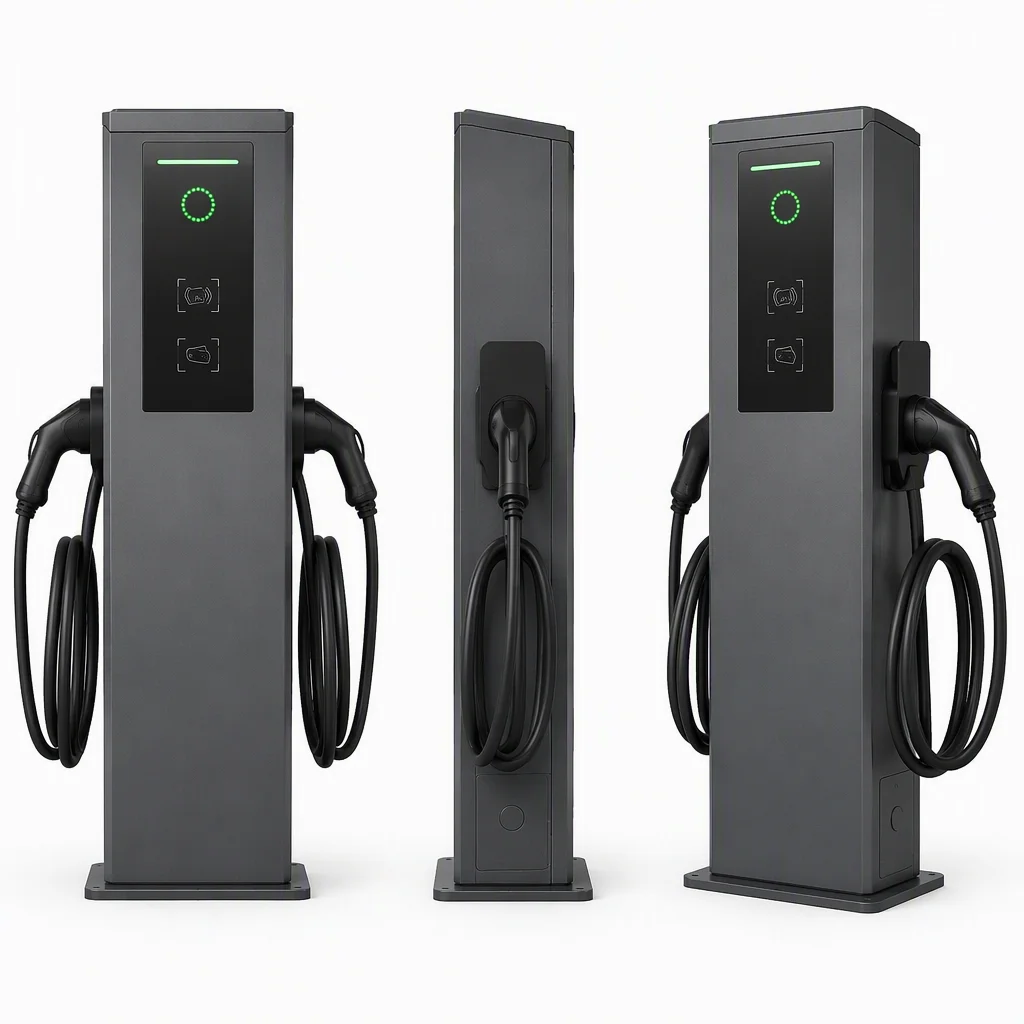

Two bays, one pedestal.
A single column charges two vehicles at once, halving the number of ground anchorages and cable runs a car-park operator has to trench. Each port runs its own 32 A session with independent RFID and metering.
- 11 / 22 kW ×2 on 400 V three-phase, 32 A per port.
- Type 2 ×2 connectors (Type 1 on request) with cable management.
- MID-certified metering for tenant, guest or driver billing.
- IP65 + IK10 pedestal for exposed parking decks.
Key parameters, on one card.
| Rated power | 11 / 22 kW ×2 (dual port) |
|---|---|
| Input | 400 V three-phase |
| Max current | 32 A ×2 |
| Connector | Type 2 ×2 |
| Metering | MID-certified energy meter per port |
| Enclosure | IP65 · IK10 |
| Operating temp | −30°C to +55°C |
| Protocol | OCPP 1.6J / 2.0.1 |
| Access | RFID ×2 · App |
| Load management | Dynamic load balancing (DLB) |
Full specification.
| Parameter | Value |
|---|---|
| Rated power | 11 / 22 kW ×2 |
| Input voltage | 400 V AC three-phase |
| Input frequency | 50 / 60 Hz |
| Max current | 32 A ×2 |
| Connector | Type 2 (IEC 62196-2) ×2 · Type 1 on request |
| Cable length | 5 m per port |
| Charging mode | Mode 3 (IEC 61851-1) |
| Efficiency | >95% |
| Standby power | <3 W per port |
| Metering | MID-certified energy meter, per port |
| Enclosure rating | IP65 · IK10 |
| Operating temperature | −30°C to +55°C |
| Relative humidity | 5%–95% non-condensing |
| Communication | Ethernet · Wi-Fi · 4G (optional) |
| Protocol | OCPP 1.6J / 2.0.1 |
| Access control | RFID ×2 (MIFARE) · App |
| Load management | Dynamic load balancing · group scheduling |
| Certification | CE · UL 2594 · FCC · Energy Star |
Built to bill, not just to charge.
Workplace and retail sites need per-session revenue and a supply that stays inside the building's capacity. The commercial pedestal does both.
- MID-certified metering measures each port to the kilowatt-hour, so a landlord bills tenants, guests and staff separately and legally.
- Dynamic load balancing shares one supply across a row of pedestals, avoiding the demand charges that make up 30–70% of a commercial bill.
- Dual RFID readers let two drivers start independent sessions without a shared display queue.
- OCPP 2.0.1 reports every session for settlement, remote firmware and smart-charging schedules.
Details that hold up in the field.

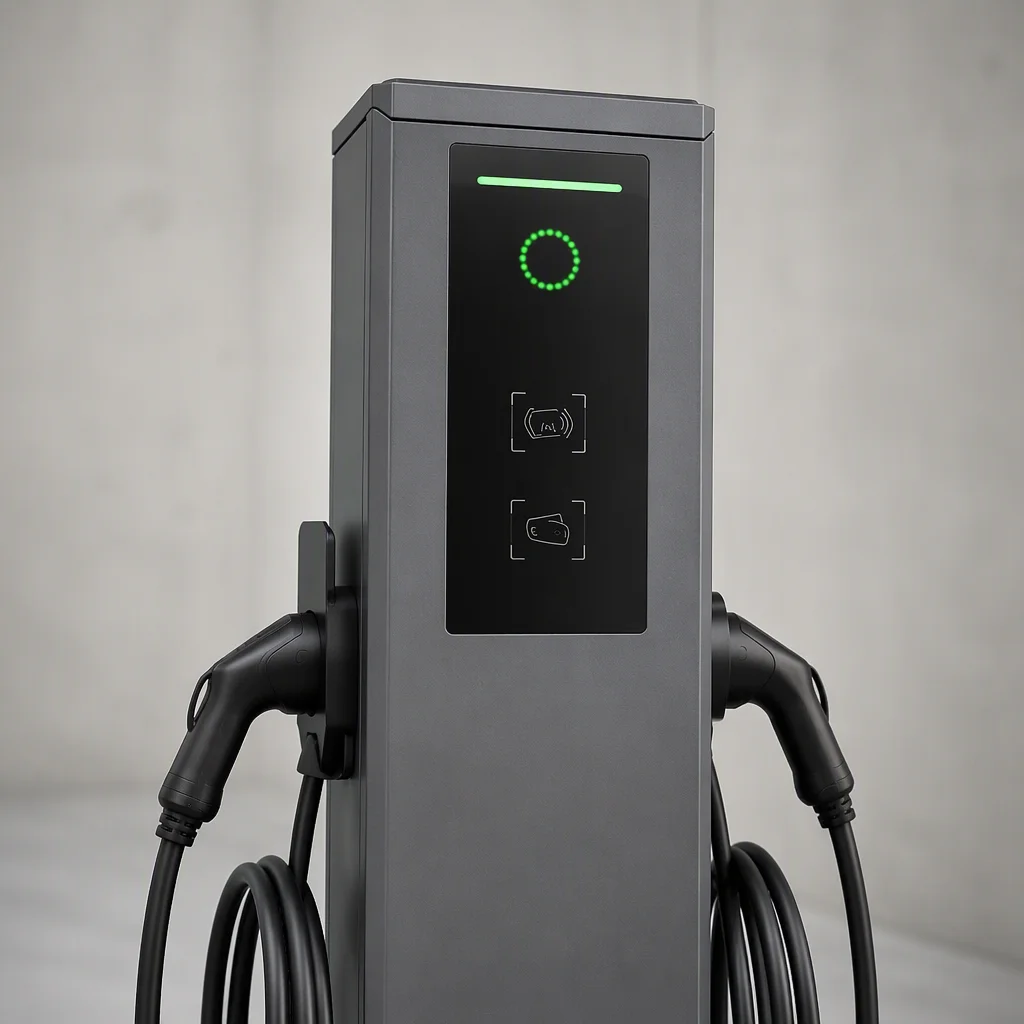

The RFID reader and dual cable holsters on the 11/22 kW pedestal — swipe, plug, and the bay meters the session.
Request datasheetWorkplace, retail or shared parking.
Workplace
Employees park 4–10 hours — exactly what AC is for. DLB keeps 20 pedestals on a feed that a single DC unit would overwhelm.
Retail & hospitality
EV drivers visit 45% more often than fuel customers. A dual-port pedestal doubles bays per anchorage and bills each session through MID.
Multi-tenant & condo
Per-port metering and RFID give every resident their own bill on a shared supply — solving the capacity and cost-splitting problem at once.
Approved for public and semi-public parking.
The commercial pedestal carries the same CE, UL 2594 and FCC marks as the wallbox, with MID-certified metering for lawful billing and ENERGY STAR standby compliance.
Commercial pedestal, answered.
Spec your commercial AC project.
Tell us the bay count, billing model and target market. We return a datasheet, MID metering details, certification scope and lead time within 48 hours.
